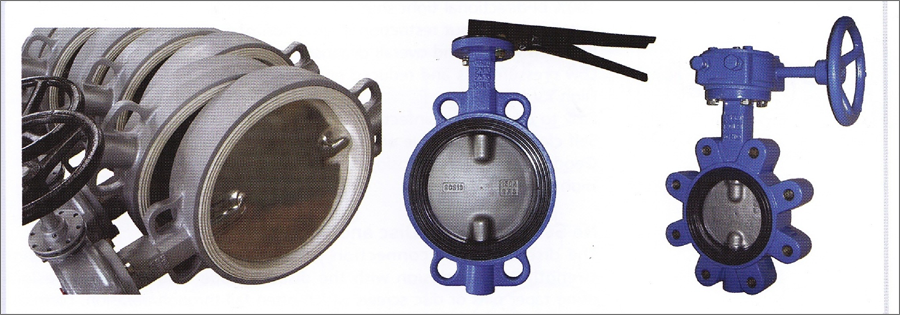

R Class – Rubber Lined Butterfly Valve

100% Bi-directional tight shut off at full rated pressure

Valve Type

• WAFER - RW Class Rubber Lined Butteryfly Valves
• SEMI-LUG - RS Class Rubber Lined Butterfly Valves
• LUG - RL Class Rubber Lined Butterfly Valves
• FLANGE - RF Class Rubber Lined Butterfly Valves

Standard Compliance

• Conform to MSS SP67, API 609, EN593, in general.

Producing Range

• Size : DN 50 to DN 3000(2inch~120inch)
• Working Pressure : Up to 16bar
• Working Temperature : -20°C~+160°C

Connection Flange

• ANSI B16.1 CL. 125LB & B16.5 Cl. 150LB/MSS SP44 CL. 150LB
• AS2129 Table D & E / EN 1092 PN6, PN10 & PN16
• BS10 Tabel D &E / DIN2501 PN6, PN10 & PN16
• ISO 7005 PN6, PN10 & PN16 / KS B 1511/JIS B 2210 5K, 10K & 16K
• SABS 1123 Table 1000/3 & Table 1600/3

Face to Face Dimensions

• Conform to EN 558, ISO 5732, MSS SP67, JIS B2032 and AP1609

Application

Air Conditioning	Shipbuilding Industry	Paper Industry
Air Line	Drilling Rigs	Sand Handling
Water Works	Dry Powder	Sugar Industry>/td>
Ballast and Bilge sytem	Food and Beverage	Waste Water
Chemical Processing	Gas Plant	Water and Others
Power Plants	heating Line	Thermo technical Watertreatement
Desalination Plants	Mining Industy

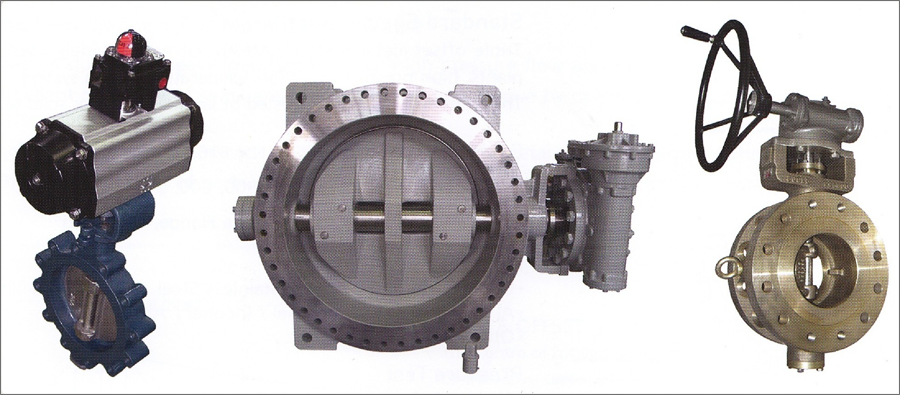

T Class – Double & Triple Offset Butterfly Valve

Valve Type

• WAFER - TW Class Double & Triple Offset metal seated butterfly valves
• LUG - TL Class Double & Triple Offset metal seated butterfly valves
• FLANGE - TF Class Double & Triple Offset metal seated butterfly valves

Standard Compliance

• Conform to API 609, EN593 and MSS SP 67
• Fire Safe requirement meets BS 6755 part 2 / API6FA and API Std 607 4th edition.

Producing Range

• Size : 50mm(2inch) ~ 3000mm(120inch)
• Working Pressure :
  Maximum 2220psi(156bar)
  upto 156 bar for DN 80 ~ DN 600
  upto 114 bar for DN 650 ~ DN 1000
  upto 22 bar for DN 1200 ~ DN 2000
• Working Temperature : -196°C~+700°C

Connection Flange

• EN1092 PN10, PN16, PN25, PN40
• ANSI B16.5, 16.47 CL. 150LBm 300LB, 600LB, 900LB / MSS SP44 CL, 150LB, 300LB, 600LB, 900LB
• ISO 7005 PN10, PN16, PN25, PN40 / KS B 1511 / JIS B 2210 10K, 16K, 20K, 30K, 40K

Face to Face Dimensions

• Conform to API609, EN 558, ISO 5752 and ANSI B 16.34

Application

Nuclear Power Plants	Fire Safe Line
Petrochemical Plants	Exhaust Gas line & Steam line
Petroleum Refinery	Cryogenic Services
Fossil Power Plants	Ballast and bilge system
Desalination plants	Drinking Water
Food and beverage	HAVC
Paper industry	Thermo technical water treatment
Chemical processing	Mining industry

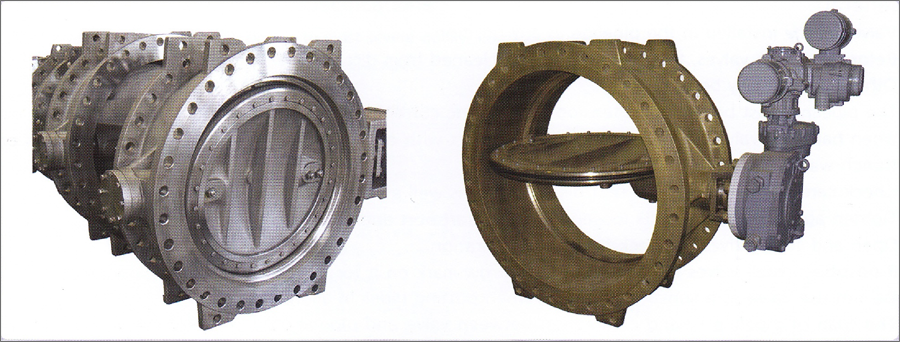

W Class – Water Works Butterfly Valve

100% Bi-directional tight shut off at full rated pressure

Valve Type

• WAFER - WW Class Eccentric Butterfly valves
• FLANGE - WF Class Eccentric Butterfly valves

Standard Compliance

• The face to face dimension shall be in accordance with EN 593, AWWA, C504 or other STANDARD are available upon request.
• Rubber lining on body & disc of valve is available to manufacture according to customer's request.

Producing Range

• Size : DN 50 to DN 4000(4inch ~ 160inch)
• Working Pressure :
  upto 25 bar for DN 80 ~ DN 600
  upto 16 bar for DN 650 ~ DN 1000
  upto 10 bar for DN 1200 ~ DN 4000
• Working Temperature : -20°C~+160°C

Connection Flange

• EN1092 PN10, PN16 / ANSI B 16.1 CL.125LB & B16.5 CL. 150LB
• MSS SP44CL 150LB
• AWWA C207 Class D & E
• ISO 7005 PN10 PN16 / KS B 1511 / JIS B 2210 10K, 16K and 20K

Face to Face Dimensions

• Conform to EN 558. ISO 5752, AWWA C504

Application

Water Works	Power Plant
Sewage Plant	Heating and Ventilation
Desalination Plant	Chemical Industry etc.
Air Conditioning	Shipbuilding Industry
Irrigation	Gas Plant

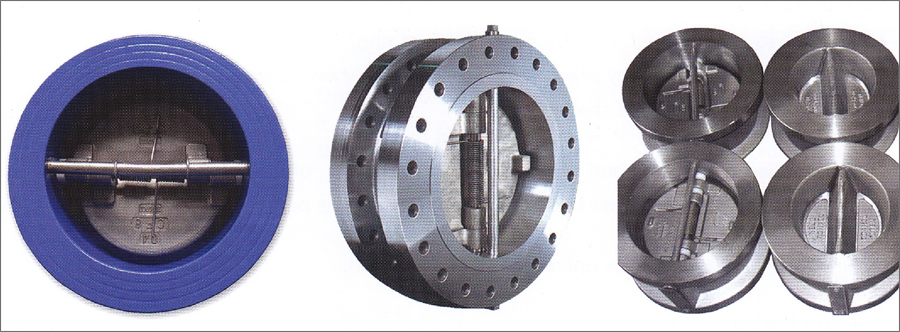

D Class – Dual Plate Check Valve

Valve Type

• WAFER - DW Class Dual Plate Check Valve
• LUG - DL Class Dual Plate Check Valve
• FLANGE - DF Class Dual Plate Check Valve

Standard Compliance

• The face to face dimension shall be in accordance with API594, or other STANDARDS are available upon request.

Producing Range

• Size : DN 50 to DN 1800(2inch ~ 72inch)
• Working Pressure : up to 25bar
• Working Temperature : -20°C~+160°C

Connection Flange

• ANSI B16.1 CL.125LB & B16.5 CL.150LB / MSS SP44 CL.150LB
• AN2129 Table D & E / EN 1092 PN6, PN10 & PN16
• BS10 Table D &E / DIN2501 PN6, PN10 & PN16
• ISO 7005 PN6, PN10 & PN16 / KS / KIS 5K, 10K, 16K & 20K

Face to Face Dimensions

• Conform to API 594

Application

Chemical, Petrochemical Power generation	Foodstuff and Allied industries
Mechanical engineering Mineral-oil industry	Public utilities, Municipal undertakings
Textile industry shipbuilding	Power generation
Heating, air-conditioning, pipelines	Mechanical engineering mineral-oil industry
Iron and steel industry, mining industry	Textile industry shipbuilding
